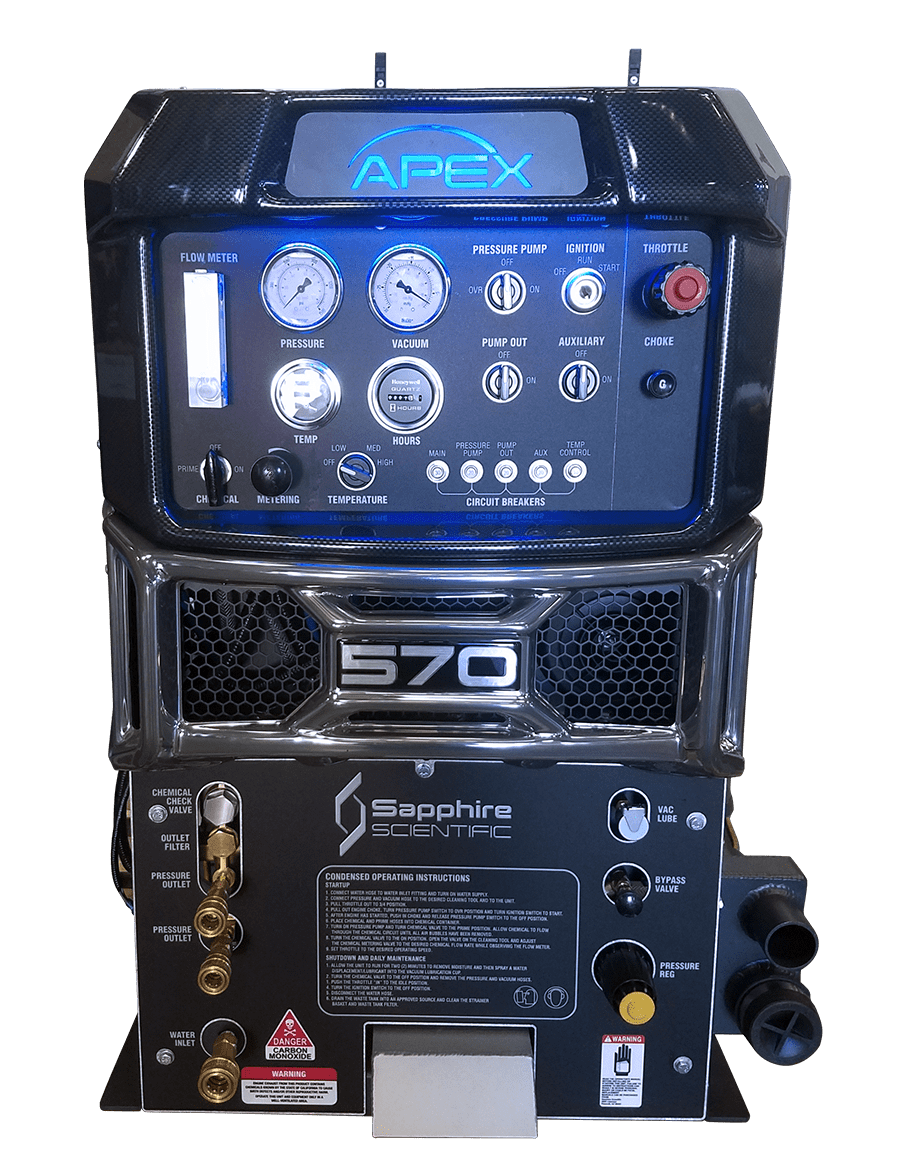

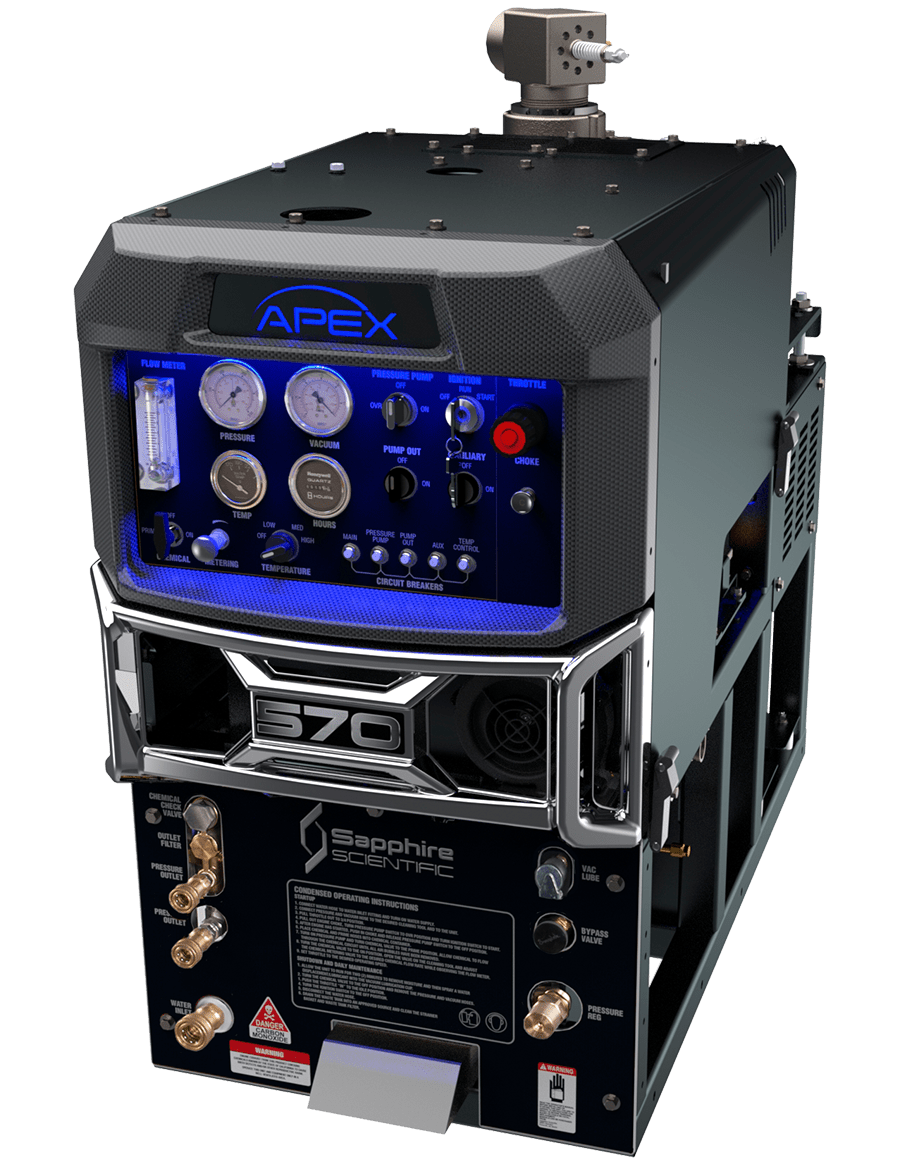

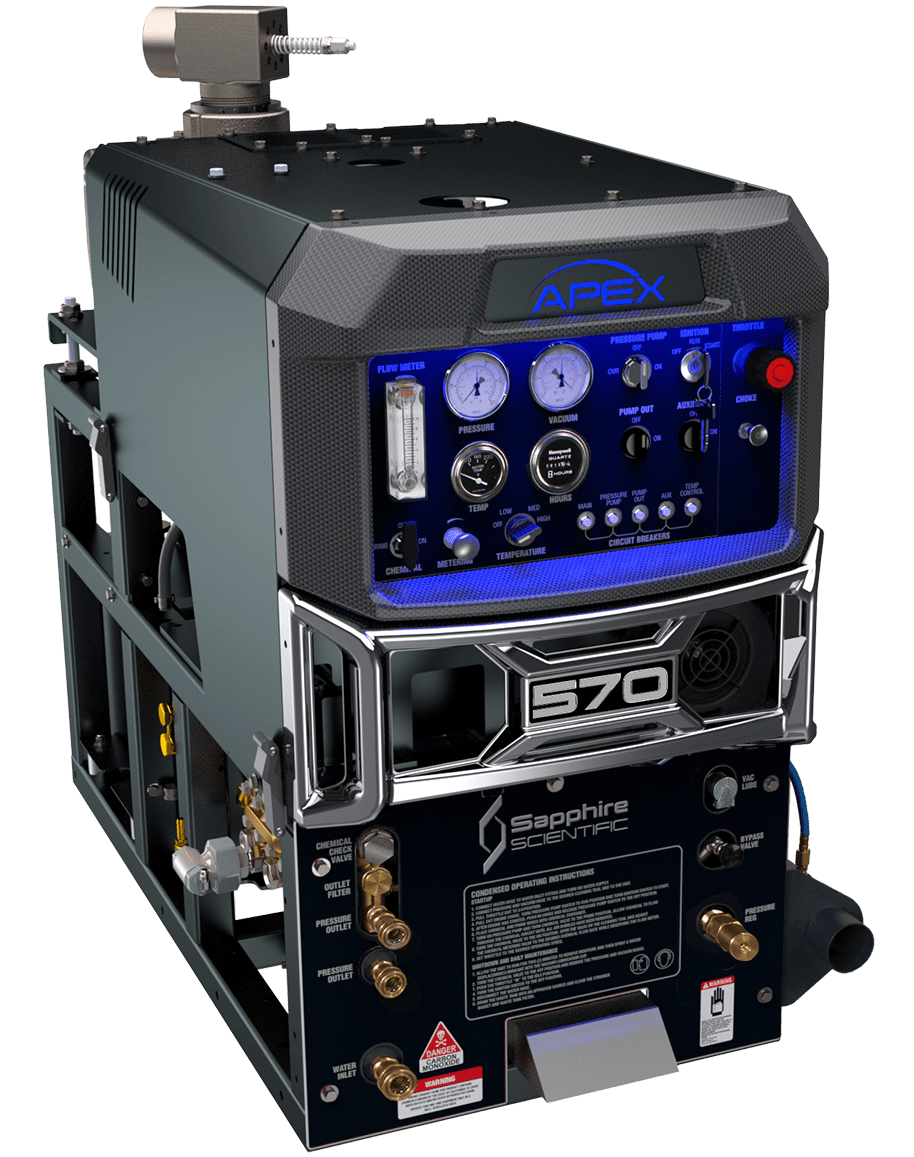

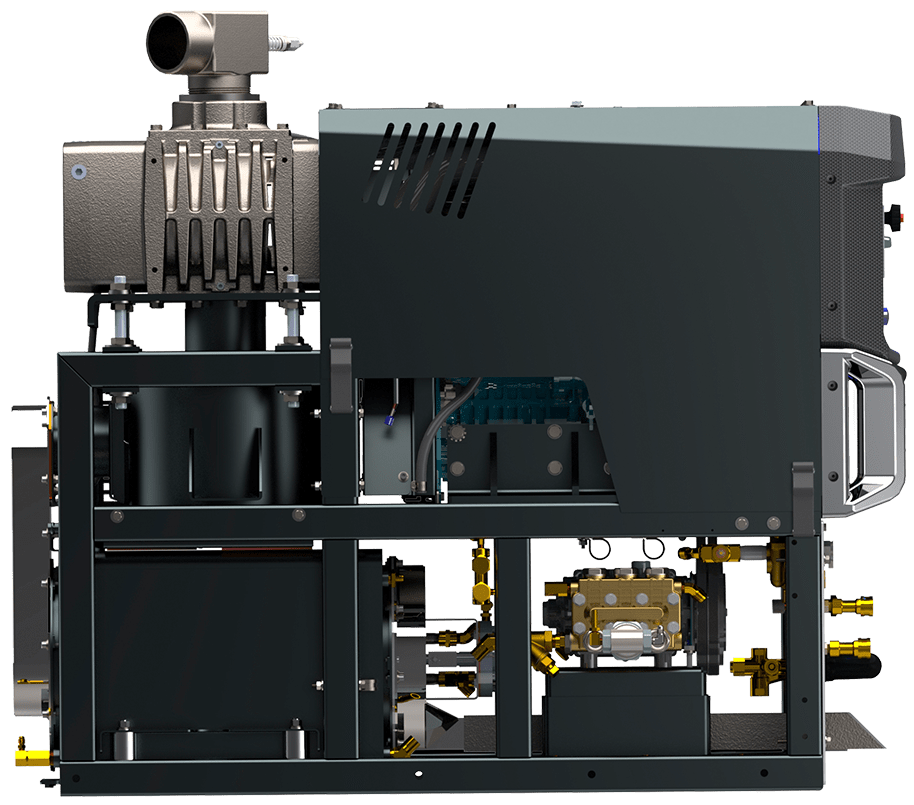

2018 APEX 570

By Sapphire Scientific

  • 90 gal waste tank
  • 31 HP Kubota gasoline engine
  • Produces up to 1500 PSI and 5 GPM at 1500 RPM
  • Vacuum at 13 in. and flows up to 455 CFM

PLEASE CALL 1-800-334-5747 to Order

$27,394.00

Out of stock

SKU: SS-570
Categories: ,

Description

APEX 570 – New Cerakote ceramic-coating lowers the heat radiation on all exhaust components by more than 30% to reduce component fatigue and extend your truckmount life—plus keep the van interior cooler! Powered by a liquid-cooled 31 HP Kubota gasoline engine, the Apex 570 uses the patented Sapphire Scientific triple-source thermal well system to deliver maximum consistent heat. Features a sleek new design and the superior performance you expect from Prochem and Sapphire!

SIZES ▪ OPTIONS
72-570:90 gal. / 341 L waste tank
72-570HC:120 gal. / 454 L waste tank
Features
  • Quieter Helical Tri-Lobe HF 408 Blower produces less vibration and ensures better dry times
  • Through-frame drive belt cooling significantly reduces downtime by extending belt life
  • Cerakote ceramic coating on exhaust system minimizes heat and extends components’ service life
  • Patented thermal well design incorporates tube-and-shell heat exchanger to maximize heat transfer from engine to solution.
  • Easy-to-remove access panel and side hoods allows for quick service
  • Narrowest liquid-cooled slide-in on the market.

Specifications

  • Power plant:  Kubota WG972 31 HP liquid cooled cast iron gasoline engine operating at 3000 RPM
  • Vacuum pump:  Gardner Denver trilobe HeliFlow® HF408 helical positive displacement blower. Vacuum at 13 in. and flows up to 455 CFM.
  • Solution pump:  General HTS2016S producing up to 1500 PSI and 5 GPM at 1500 RPM
  • Waste tank:   90 gal. marine grade aluminum. Optional: 120 gal. high capacity waste tank
  • Belt cooling:  100 CFM through-frame air injection system
  • Console dimensions (W×H×D):  22 × 43 × 50 in. | 56 × 109 × 127 cm
  • Frame construction:  0.125 in. × 2 in. powder-coated aluminum box tubing.
  • Belt cooling:  100 CFM through-frame air injection system

Standard Equipment

  • One low-profile 14 in. 6-jet titanium alloy wand
  • One 100 ft. section of 0.25 in. solution hose with quick connects and shut off valve
  • One 50 ft. section of 0.25 in. solution hose with quick connects
  • One 50 ft. section of water supply with quick connect
  • Three 2 in. × 50 ft. sections vacuum hose
  • Two 2 in. hose connectors
  • Battery box
  • Installation kit
  • Operation and service manual

Truckmounts

Manufacturer Info

PLEASE CALL 1-800-334-5747 to Order

WARNING!

DO NOT attempt to service this unit while it is running. High-speed parts as well as high temperature components may result in severe injury, severed limbs, or fatality.

The Troubleshooting Guide describes how to check for potential malfunctions. Accurate troubleshooting requires a thorough understanding of all truckmount systems in this unit. Please refer to the owner’s manual or contact Cleaner’s Depot for complete troubleshooting and repair assistance. Do not alter or modify your truckmount in any way. Use only replacement parts authorized by Legend Brands. Modifications or use of unapproved parts could create a hazard and will void your warranty. Contact Cleaner’s Depot a Legend Brands distributor for assistance.

Additional information

Weight 1056 lbs
